Hot-selling 360 degree rotating timber grapple hydraulic log grab for excavators

FOB Reference Price:Get Latest Price
$3,500.00 - $4,800.00 / Sets | 1 Set/Sets (Min. Order)
Brand Name:
DLK
Model Number:
DLKL06
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
After-sales Service Provided:
No overseas service provided
Name:
hydraulic rotating grapple
Color:
Customized
Certification:
ISO CE SGS
condition:
new
Oil pressure:
150-170kg/cm2
Warranty:
12 Months
Suitable excavator:
12-16ton
Gross weight:
740kg
Max jaw opening:
1800mm
other:
OEM Service
Supply Ability
Supply Ability:
5000 Set/Sets per Year
Packaging & Delivery
Packaging Details
standard export package
Port
QINGDAO
Product Description

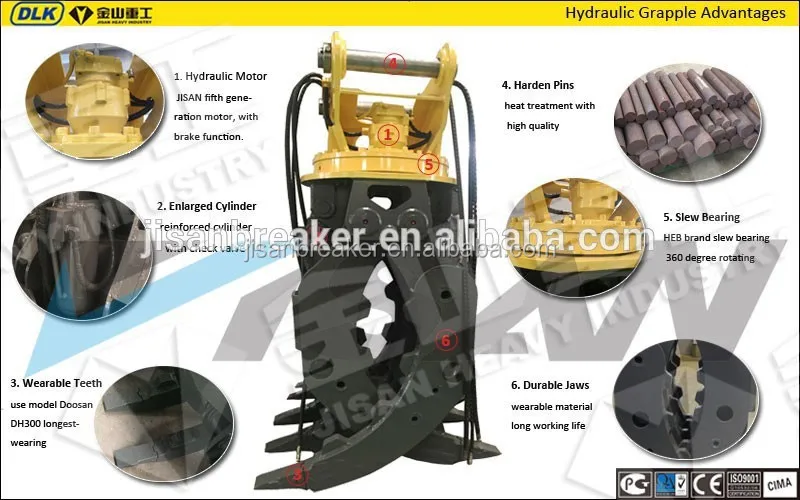

Main Features

- High wear resistance and light weight
-adopt small-tonnage excavator rotary device and brake block that extend working life,improve stability and increase efficiency.
- Light weight with wide opening jaws show outstanding performance of grabbing as well as maximizing operating efficiency
- Equipped with large cylinder that enhance productivity on the jobsite.
-Full 360 degree hydraulic rotation
- Specially-made worm gear design adopted to extend working life and reduce maintenance cost

SPECIFICATIONS
Item/Model
Unit
DLKL03
DLKL04
DLKL06
DLKL08
DLKL10
DLKL14
DLKL20
Weight
Kg
320
390
740
1380
1700
1900
2100
Max jaw opening
Mm
1300
1400
1800
2300
2500
2500
2700
Oil pressure
Kg/cm2
110-140
120-160
150-170
160-180
160-180
180-200
180-200
Set up pressure
Kg/cm2
170
180
190
200
210
250
250
Operating flux
L/min
30-55
50-100
90-110
100-140
130-170
200-250
250-320
Cylinder Volume
Ton
4.0 x 2
4.5 x 2
8.0 x 2
9.7 x 2
12 x 2
12 x 2
14 x 2
Suitable excavator
Ton
4-6
7-11
12-16
17-23
24-30
31-40
41-50
Detailed Images

working scene:

JISAN grapple is specially designed, researched and manufactured to meed special need of excavator. It can be used to handle stone, log, piping, steel bar, marble blocks, disposable waste and many others, not only reduced labour intensity of worker, but also insured operation safety.

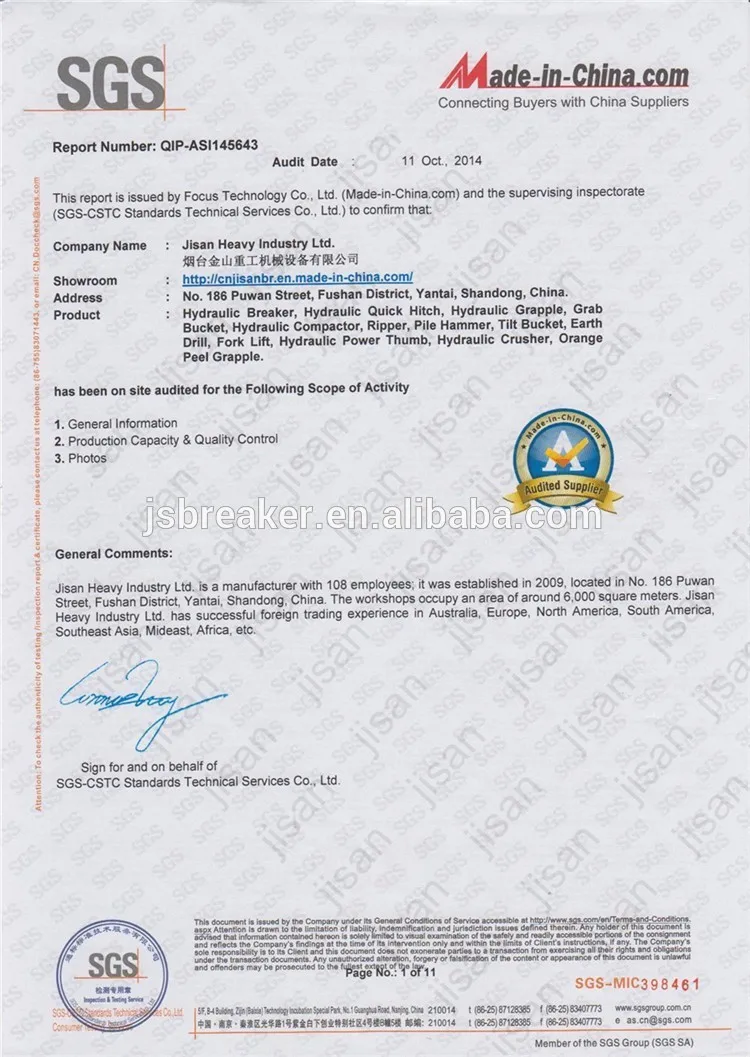

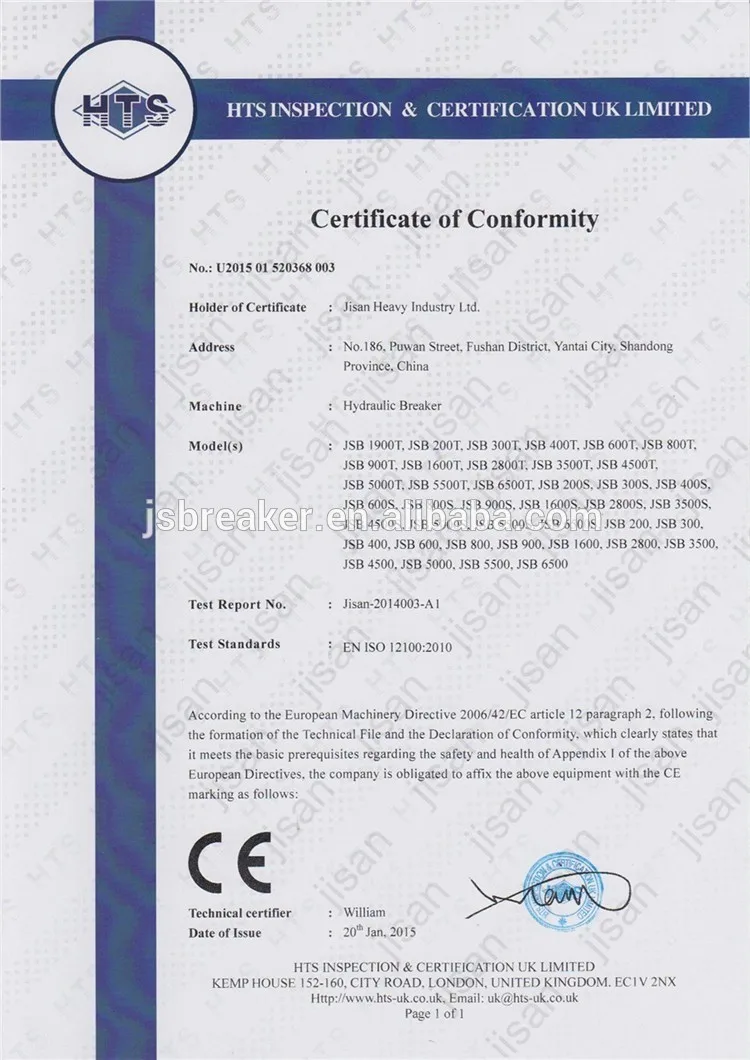

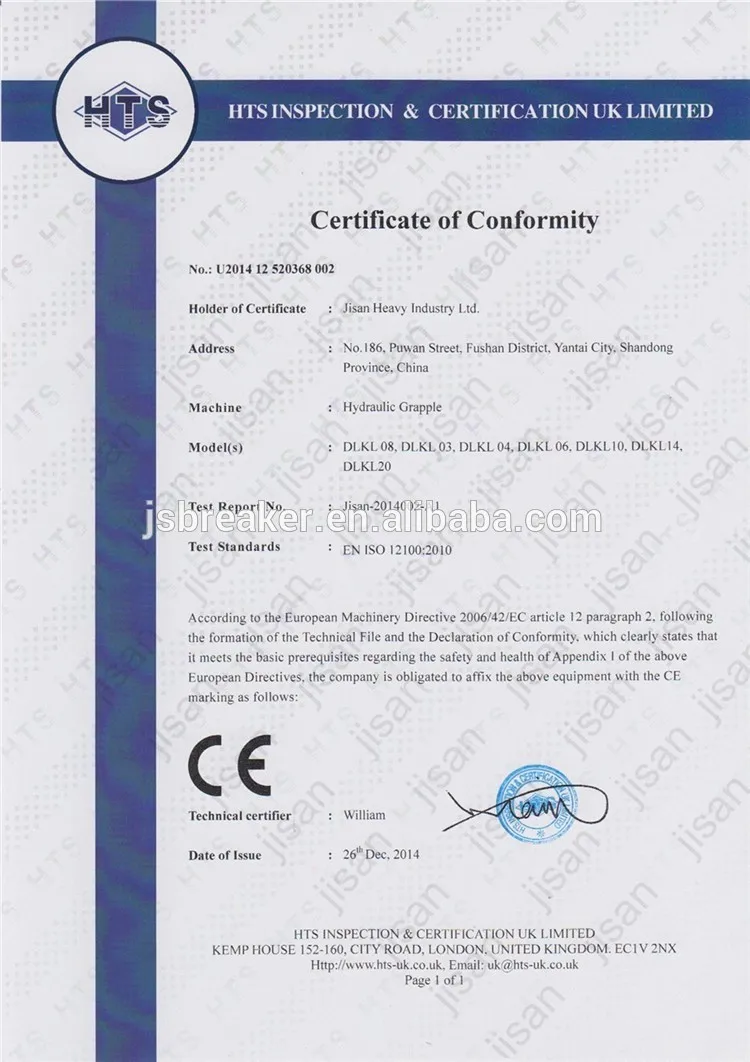

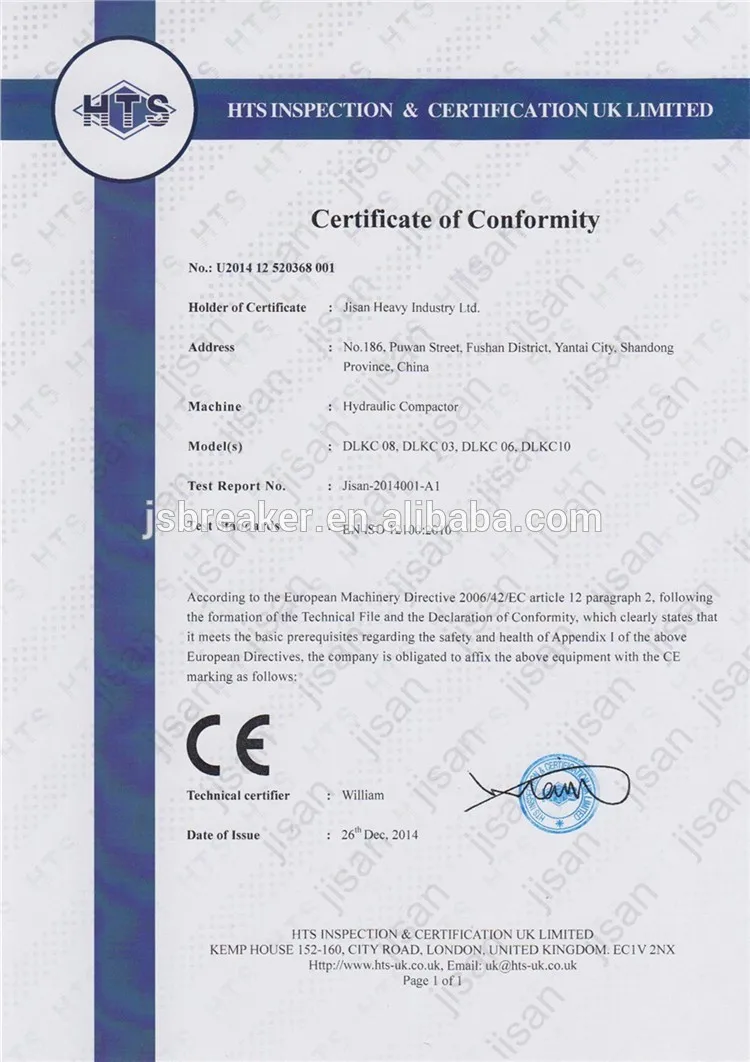

Certifications
Our Company
JISAN is one of the largest and most professional excavator attachment manufacturer with ten years experiences. Our products have exported to many countries in the world including India, Saudi Arabia, Iran, Brazil, New Zealand, Australia, southeast Asia, USA and France etc.
with advanced  imported CNC Center and strict quality control management, our products have been approved by ISO,CE authority.
Packing & Delivery
Packaging
Size
1650(L) * 1100 (W) *1000(D)
Weight
740Kg

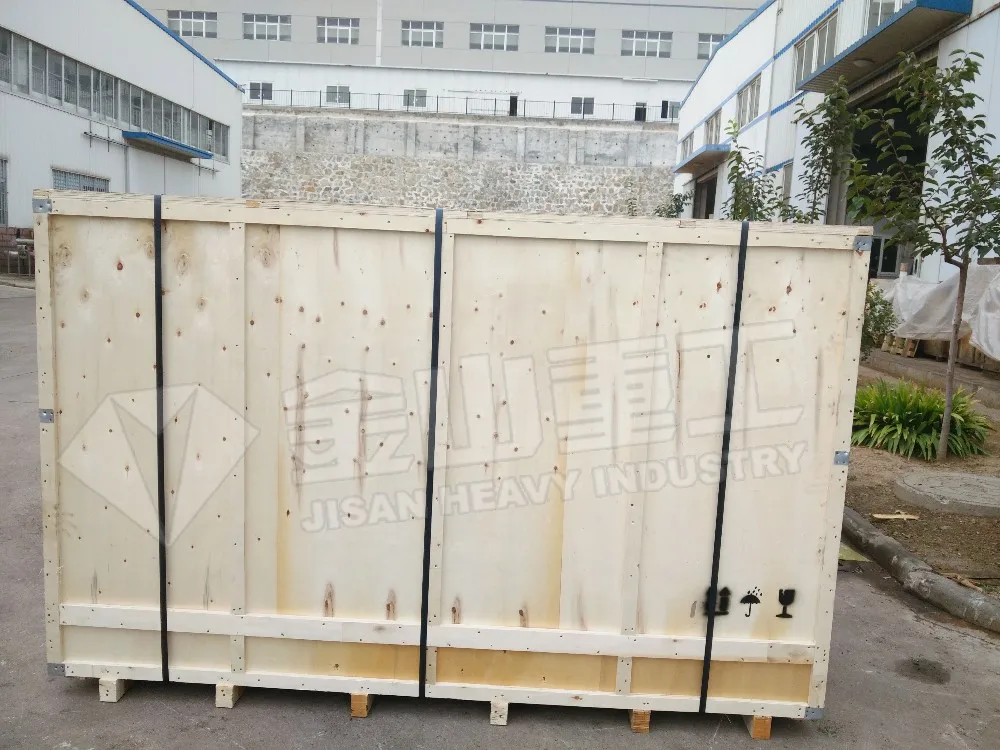

Packaging Details
The normal package is wooden box(Size: L*W*H). If container is too tigher,we will pack it according to customers special request.
Our Service

Pre-Sales Service

* 24-hours inquiry and consulting support.

* View our Factory.

*Well-trained and qualified staff to answer all your questions

After-Sales Service

* Installation and use instruction.

*7Days*24Hours after-sales service by email and phone

*14 months warranty
